preempt/irq：NMI 嵌套计数迁出 + 中断重调度热路径优化

diff --git a/include/linux/hardirq.h b/include/linux/hardirq.h
index d57cab4d4c06..8d4895531a45 100644
--- a/include/linux/hardirq.h
+++ b/include/linux/hardirq.h
@@ -10,6 +10,8 @@
 #include <linux/vtime.h>
 #include <asm/hardirq.h>

+DECLARE_PER_CPU(unsigned int, nmi_nesting);
+
 extern void synchronize_irq(unsigned int irq);
 extern bool synchronize_hardirq(unsigned int irq);

@@ -102,14 +104,17 @@ void irq_exit_rcu(void);
  */

 /*
- * nmi_enter() can nest up to 15 times; see NMI_BITS.
+ * nmi_enter() can nest - nesting is tracked in a per-CPU counter.
  */
 #define __nmi_enter()						\
 	do {							\
 		lockdep_off();					\
 		arch_nmi_enter();				\
-		BUG_ON(in_nmi() == NMI_MASK);			\
-		__preempt_count_add(NMI_OFFSET + HARDIRQ_OFFSET);	\
+		/* Maximum NMI nesting is 15. */		\
+		BUG_ON(__this_cpu_read(nmi_nesting) >= 15);	\
+		__this_cpu_inc(nmi_nesting);			\
+		__preempt_count_add(HARDIRQ_OFFSET);		\
+		preempt_count_set(preempt_count() | NMI_MASK);	\
 	} while (0)

 #define nmi_enter()						\
@@ -124,8 +129,12 @@ void irq_exit_rcu(void);

 #define __nmi_exit()						\
 	do {							\
+		unsigned int nesting;				\
 		BUG_ON(!in_nmi());				\
-		__preempt_count_sub(NMI_OFFSET + HARDIRQ_OFFSET);	\
+		__preempt_count_sub(HARDIRQ_OFFSET);		\
+		nesting = __this_cpu_dec_return(nmi_nesting);	\
+		if (!nesting)					\
+			preempt_count_set(preempt_count() & ~NMI_MASK);	\
 		arch_nmi_exit();				\
 		lockdep_on();					\
 	} while (0)
diff --git a/include/linux/preempt.h b/include/linux/preempt.h
index d964f965c8ff..586f96688325 100644
--- a/include/linux/preempt.h
+++ b/include/linux/preempt.h

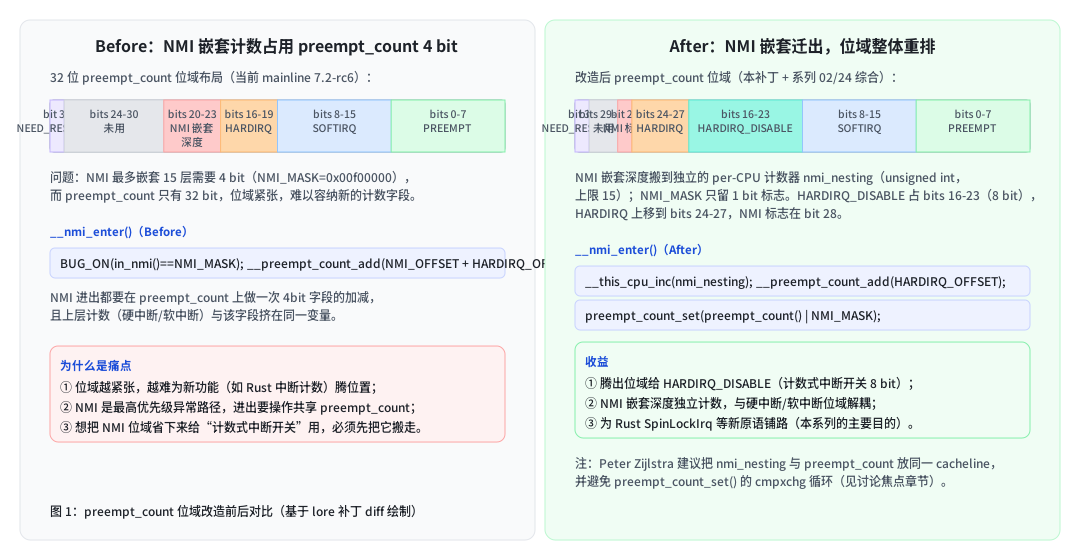

@@ -17,6 +17,8 @@
  *
  * - bits 0-7 are the preemption count (max preemption depth: 256)
  * - bits 8-15 are the softirq count (max # of softirqs: 256)
+ * - bits 16-19 are the hardirq count (max # of hardirqs: 16)
+ * - bit 20 is the NMI flag (no nesting count, tracked separately)
  *
  * The hardirq count could in theory be the same as the number of
  * interrupts in the system, but we run all interrupt handlers with
@@ -24,16 +26,19 @@
  * there are a few palaeontologic drivers which reenable interrupts in
  * the handler, so we need more than one bit here.
  *
+ * NMI nesting depth is tracked in a separate per-CPU variable
+ * (nmi_nesting) to save bits in preempt_count.
+ *
  *         PREEMPT_MASK:	0x000000ff
  *         SOFTIRQ_MASK:	0x0000ff00
  *         HARDIRQ_MASK:	0x000f0000
- *             NMI_MASK:	0x00f00000
+ *             NMI_MASK:	0x00100000
  * PREEMPT_NEED_RESCHED:	0x80000000
  */
 #define PREEMPT_BITS	8
 #define SOFTIRQ_BITS	8
 #define HARDIRQ_BITS	4
-#define NMI_BITS	4
+#define NMI_BITS	1

 #define PREEMPT_SHIFT	0
 #define SOFTIRQ_SHIFT	(PREEMPT_SHIFT + PREEMPT_BITS)

diff --git a/arch/arm64/include/asm/preempt.h b/arch/arm64/include/asm/preempt.h
index 0dd8221d1bef..e9f597d87413 100644
--- a/arch/arm64/include/asm/preempt.h
+++ b/arch/arm64/include/asm/preempt.h
@@ -55,20 +55,20 @@ static inline void __preempt_count_sub(int val)
 	WRITE_ONCE(current_thread_info()->preempt.count, pc);
 }

-static inline int __preempt_count_add_return(int val)
+static inline unsigned long __preempt_count_add_return(int val)
 {
-	u32 pc = READ_ONCE(current_thread_info()->preempt.count);
+	u64 pc = READ_ONCE(current_thread_info()->preempt_count);
 	pc += val;
-	WRITE_ONCE(current_thread_info()->preempt.count, pc);
+	WRITE_ONCE(current_thread_info()->preempt_count, pc);

 	return pc;
 }

-static inline int __preempt_count_sub_return(int val)
+static inline unsigned long __preempt_count_sub_return(int val)
 {
-	u32 pc = READ_ONCE(current_thread_info()->preempt.count);
+	u64 pc = READ_ONCE(current_thread_info()->preempt_count);
 	pc -= val;
-	WRITE_ONCE(current_thread_info()->preempt.count, pc);
+	WRITE_ONCE(current_thread_info()->preempt_count, pc);

 	return pc;
 }
diff --git a/include/asm-generic/preempt.h b/include/asm-generic/preempt.h
index c8683c046615..7629e23102d1 100644
--- a/include/asm-generic/preempt.h
+++ b/include/asm-generic/preempt.h
@@ -59,14 +59,14 @@ static __always_inline void __preempt_count_sub(int val)
 	*preempt_count_ptr() -= val;
 }

-static __always_inline int __preempt_count_add_return(int val)
+static __always_inline unsigned long __preempt_count_add_return(int val)
 {
 	*preempt_count_ptr() += val;

 	return *preempt_count_ptr();
 }

-static __always_inline int __preempt_count_sub_return(int val)
+static __always_inline unsigned long __preempt_count_sub_return(int val)
 {
 	*preempt_count_ptr() -= val;

diff --git a/include/linux/interrupt_rc.h b/include/linux/interrupt_rc.h
index dd4444c61330..c044dc395452 100644
--- a/include/linux/interrupt_rc.h
+++ b/include/linux/interrupt_rc.h
@@ -27,7 +27,7 @@ DECLARE_PER_CPU(struct interrupt_disable_state, local_interrupt_disable_state);
 static inline void local_interrupt_disable(void)
 {
 	unsigned long flags;
-	int new_count;
+	unsigned long new_count;

 	WARN_ON_ONCE(in_nmi());

@@ -41,9 +41,25 @@ static inline void local_interrupt_disable(void)
 	}
 }

+#ifdef CONFIG_PREEMPTION
+static inline void local_interrupt_enable_reched(unsigned long pc)
+{
+	if (pc)
+		return;
+	/* No PREEMPT_NEED_RESCHED bit? Check tif_need_resched() */
+#ifndef PREEMPT_NEED_RESCHED
+	if (!tif_need_resched())
+		return;
+#endif
+	__preempt_schedule();
+}
+#else
+static inline void local_interrupt_enable_reched(unsigned long pc) {}
+#endif
+

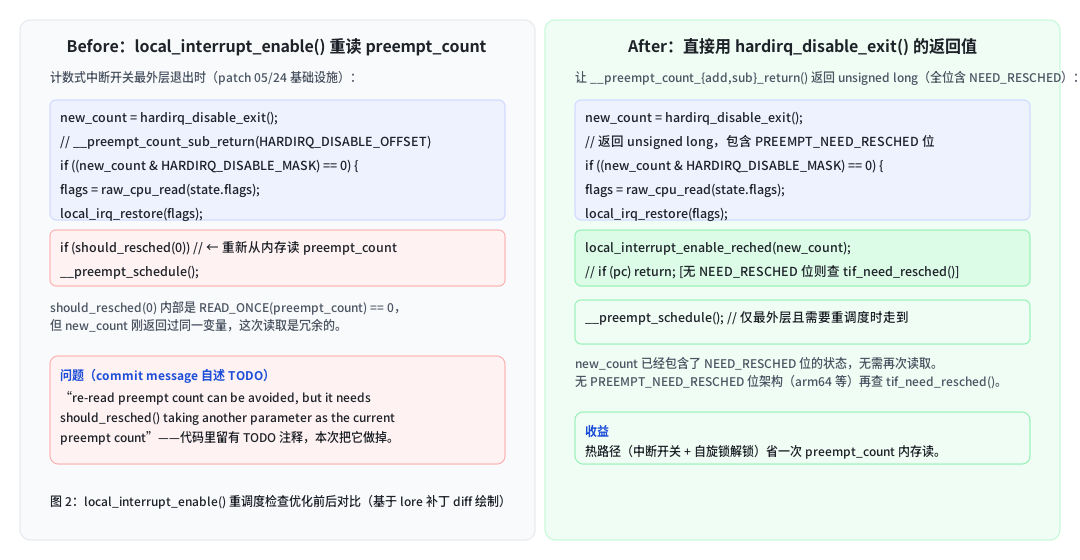

 static inline void local_interrupt_enable(void)
 {
-	int new_count;
+	unsigned long new_count;

 	new_count = hardirq_disable_exit();

@@ -52,15 +68,8 @@ static inline void local_interrupt_enable(void)

 		flags = raw_cpu_read(local_interrupt_disable_state.flags);
 		local_irq_restore(flags);
-		/*
-		 * TODO: re-read preempt count can be avoided, but it needs
-		 * should_resched() taking another parameter as the current
-		 * preempt count
-		 */
-#ifdef CONFIG_PREEMPTION
-		if (should_resched(0))
-			__preempt_schedule();
-#endif
+
+		local_interrupt_enable_reched(new_count);
 	}
 }
